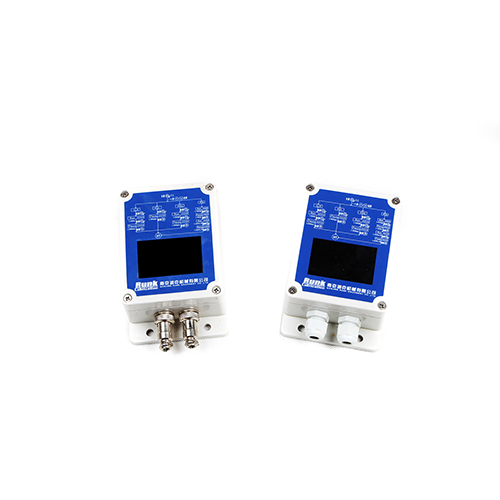

C06 controller is a lubrication system controller with 3 inch touch screen control function. The controller has independent control functions under the corresponding modes of single line (SLR), pressure (PDI), progressive (PRG) and pulse (PUS) lubrication systems. The controller has information display such as normal operation, buzzing and flashing alarm when the fault occurs, and remote fault alarm output. The controller has intuitive operation, high touch sensitivity, stable operation and strong waterproofing (IP65 protection level), and is an ideal independent control unit for lubrication of all kinds of equipment.
Characteristic:
3 inch independent touch screen;
Visual display of operation and fault symbols; waterproof and dustproof;
It has both local display and remote output of signals.
Specification of main technical parameters
Power supply: 220 VAC soil 10%
Interval time range: 1-9999 (points)
Number of cycles: 1-9999 (times)
Load capacity: 220VAC, 60W
Ambient temperature: - 20 C ~ 60 C
Environmental humidity: 85% (no condensation)
Voltage: 220 VAC + 10%
Interrupt range: 1-9999 minute
Round times: 1-9999 times
Loading: 220 vac, 60W
Temperature: -20C-60C
Moisture: 85% (no condensation)
C06
